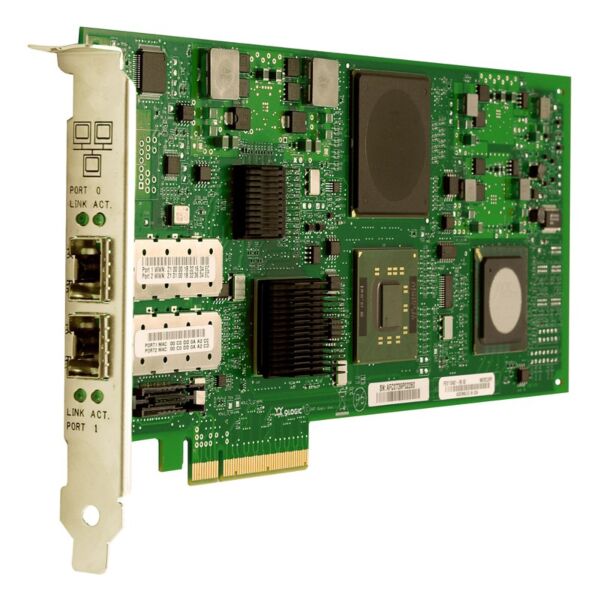

Description du produit
Host Bus Interface Specifications
Bus interface
PCI Express x8
Hardware Platforms
IA32 (x86); Intel64, AMD64 (x64)
Compliance
PCI Express Base Specification, rev. 1.0a, PCI Express Card Electromechanical Specification, rev. 1.0, PCI Bus Power Management Interface Specification, rev. 1.1
Ethernet Specifications
Throughput
10GbE full duplex line rate
Topology
Any 10Gb Ethernet Network
Ethernet Frame
1500 byte or 9600 byte (Jumbo Frame)
Stateless offload
# IP, TCP, and UDP checksum offloads
# Large Send Offload (LSO)
Enhanced Ethernet
# Priority-based flow control (802.1Qbb)
# DCBX protocol (802.1Qaz)
Compliance
IEEE: 802.3ae (10Gb Ethernet), 802.1q (VLAN), 802.3ad (Link Aggregation), 802.1p (Priority Encoding), 802.3x (Flow Control), 802.3ap (KX/KX4), 802.3ak (CX4), IEEE 1149.1 (JTAG), IPv4 Specification (RFC 791), IPv6 Specification (RFC 2460), TCP/UDP Specification (RFC 793/768), ARP Specification (RFC 826)
Fibre Channel over Ethernet (FCoE) Specifications
Performance
150,000 IOPS per port
Logins
Support for 512 concurrent logins and 1024 active exchanges per port
Class of service
Class 3
Protocols
FCP (SCSI-FCP), FC-TAPE (FCP-2)
Compliance
SCSI-3 Fibre Channel Protocol (SCSI-FCP), Fibre Channel Tape (FC-TAPE) profile, SCSI Fibre Channel Protocol-2 (FCP-2), Second Generation FC Generic Services (FC-GS-2), Third Generation FC Generic Services (FC-GS-3)
Tools and Utilities
Management tools
# SANsurfer® FC HBA Manager (GUI and CLI)
# Intel® PROSet for Windows Device Manager
Device utilities
Utilities for programming boot code; Linux® scripting tools
Boot support
BIOS
APIs
# SNIA HBA API V2, SMI-S, and FDMI
# NDIS 5.x, NDIX 6.x, and WMI
Operating systems
Windows Server ® 2003, Windows Server 2008, Red Hat® AS 4.x and 5.x, Novell® SLES 10.x
Physical Specifications
Ports
Dual 10GbE Ethernet
Connections
Small form factor pluggable (SFP+)
Form factor
Standard height PCI Express card: 24.13 cm × 11.12 cm (9.50 in. × 4.376 in.)
Bus interface
PCI Express x8
Hardware Platforms
IA32 (x86); Intel64, AMD64 (x64)
Compliance
PCI Express Base Specification, rev. 1.0a, PCI Express Card Electromechanical Specification, rev. 1.0, PCI Bus Power Management Interface Specification, rev. 1.1
Ethernet Specifications
Throughput
10GbE full duplex line rate
Topology
Any 10Gb Ethernet Network
Ethernet Frame
1500 byte or 9600 byte (Jumbo Frame)
Stateless offload
# IP, TCP, and UDP checksum offloads
# Large Send Offload (LSO)
Enhanced Ethernet
# Priority-based flow control (802.1Qbb)
# DCBX protocol (802.1Qaz)
Compliance
IEEE: 802.3ae (10Gb Ethernet), 802.1q (VLAN), 802.3ad (Link Aggregation), 802.1p (Priority Encoding), 802.3x (Flow Control), 802.3ap (KX/KX4), 802.3ak (CX4), IEEE 1149.1 (JTAG), IPv4 Specification (RFC 791), IPv6 Specification (RFC 2460), TCP/UDP Specification (RFC 793/768), ARP Specification (RFC 826)
Fibre Channel over Ethernet (FCoE) Specifications
Performance
150,000 IOPS per port
Logins
Support for 512 concurrent logins and 1024 active exchanges per port
Class of service
Class 3
Protocols
FCP (SCSI-FCP), FC-TAPE (FCP-2)
Compliance
SCSI-3 Fibre Channel Protocol (SCSI-FCP), Fibre Channel Tape (FC-TAPE) profile, SCSI Fibre Channel Protocol-2 (FCP-2), Second Generation FC Generic Services (FC-GS-2), Third Generation FC Generic Services (FC-GS-3)
Tools and Utilities
Management tools
# SANsurfer® FC HBA Manager (GUI and CLI)
# Intel® PROSet for Windows Device Manager
Device utilities
Utilities for programming boot code; Linux® scripting tools
Boot support
BIOS
APIs
# SNIA HBA API V2, SMI-S, and FDMI
# NDIS 5.x, NDIX 6.x, and WMI
Operating systems
Windows Server ® 2003, Windows Server 2008, Red Hat® AS 4.x and 5.x, Novell® SLES 10.x
Physical Specifications
Ports
Dual 10GbE Ethernet
Connections
Small form factor pluggable (SFP+)
Form factor
Standard height PCI Express card: 24.13 cm × 11.12 cm (9.50 in. × 4.376 in.)
Caractéristiques
Marque | QLOGIC |
---|---|
Interface | 10 Gigabit Ethernet, FCoE |
Nombre de ports | 2 |
Facteur de forme | Full-Height (Pleine Hauteur) |
Normes | ANSI Fibre Channel: FC-PH-3, FC-PI-2, FC-FS, FC-AL-2, FC-GS-4, FC-FLA, FC-PLDA, FC-SP, FC-TAPE, FCP-2, and RFC 2625 (IP over FC) |
