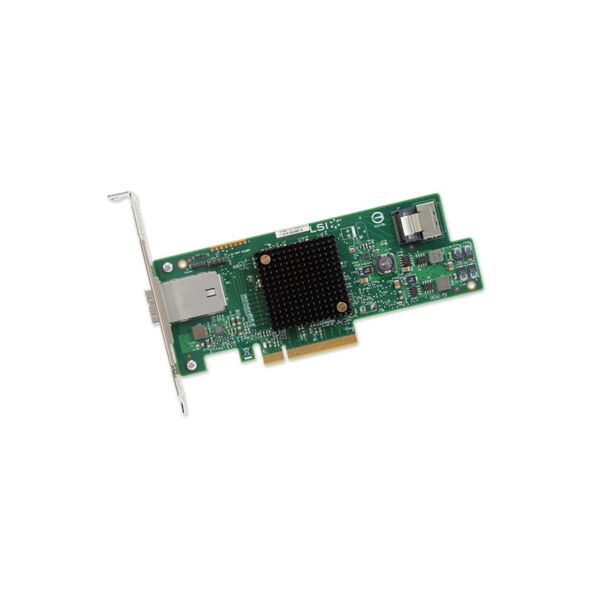

Description du produit
IO Controller LSI SAS2308/ Fusion MPT 2.0
Storage Connectivity; Data Transfer Rates 8 ports, 6Gb/s SAS 2.1 Compliant
SAS Bandwidth
Half Duplex
600 MB/s per lane
Port Configurations 4 ea, x1 internal ports (individual drives);
4 ea, x1 external ports-or-
1ea, x4 external wide port
Host Bus x8 lane, PCI Express 2.0 compliant
PCI Data Burst Transfer Rates
Half Duplex
x8, PCIe, 8000 MB/s
Physical Dimensions Low Profile (2.6" x 6.6")
Connectors One x 4 internal mini-SAS (SFF8087), One x4 external mini-SAS (SFF8088
Brackets Full height and low profile
Cable Support Passive Copper
Operating Voltage +12V +/-8%; 3.3V +/-8%
PCI Power (Nominal) 9.8W typical, Airflow min 200 LFM
Device Support 256 Non-RAID SAS/SATA devices
Integrated RAID (IR)
RAID 0 10 per volume
RAID 1 2 per volume plus hot spare
RAID 1E 10 per volume
RAID 10 10 per volume
Environmental
Operating Storage
0°C to 55°C -45°C to 105°C
5 to 90% Non-condensing 5 to 90% Non-condensing
MTBF >2,000,000 hours
Regulatory Certifications EMC: Class B-US (CFR 47, P15B); Canada (ICES-003); Japan (V-3/02.04); Europe (EN55022/EN55024);
Australia/New Zealand (AS/NZS 3548); Safety: EN60950; RoHS; WEEE
OS Support
Microsoft Windows, Linux (SuSE , Red Hat), Solaris, VMware, FreeBSD
See http://www.lsi.com/support/pages/downloads.aspx for details on versions
Warranty 3 years; with advanced replacement option
Free technical support at http://www.lsi.com/support/Pages/warrantyenhancedsupport.aspx
Storage Connectivity; Data Transfer Rates 8 ports, 6Gb/s SAS 2.1 Compliant
SAS Bandwidth
Half Duplex
600 MB/s per lane
Port Configurations 4 ea, x1 internal ports (individual drives);
4 ea, x1 external ports-or-
1ea, x4 external wide port
Host Bus x8 lane, PCI Express 2.0 compliant
PCI Data Burst Transfer Rates
Half Duplex
x8, PCIe, 8000 MB/s
Physical Dimensions Low Profile (2.6" x 6.6")
Connectors One x 4 internal mini-SAS (SFF8087), One x4 external mini-SAS (SFF8088
Brackets Full height and low profile
Cable Support Passive Copper
Operating Voltage +12V +/-8%; 3.3V +/-8%
PCI Power (Nominal) 9.8W typical, Airflow min 200 LFM
Device Support 256 Non-RAID SAS/SATA devices
Integrated RAID (IR)
RAID 0 10 per volume
RAID 1 2 per volume plus hot spare
RAID 1E 10 per volume
RAID 10 10 per volume
Environmental
Operating Storage
0°C to 55°C -45°C to 105°C
5 to 90% Non-condensing 5 to 90% Non-condensing
MTBF >2,000,000 hours
Regulatory Certifications EMC: Class B-US (CFR 47, P15B); Canada (ICES-003); Japan (V-3/02.04); Europe (EN55022/EN55024);
Australia/New Zealand (AS/NZS 3548); Safety: EN60950; RoHS; WEEE
OS Support
Microsoft Windows, Linux (SuSE , Red Hat), Solaris, VMware, FreeBSD
See http://www.lsi.com/support/pages/downloads.aspx for details on versions
Warranty 3 years; with advanced replacement option
Free technical support at http://www.lsi.com/support/Pages/warrantyenhancedsupport.aspx
Caractéristiques
Marque | LSI Logic / Avago |
---|---|
Interface | SAS 6 Gb/s |
Nombre de ports | 8 |
Type de connecteur externe | 1x SFF-8088 |
Type de connecteur interne | 1x SFF-8087 |
Niveau de Raid | 0,1,1E,10,JBOD |
Nombre de périphériques supportés | 256 |
Facteur de forme | Low Profile MD2 (Demi-Hauteur Pleine Longueur) |
