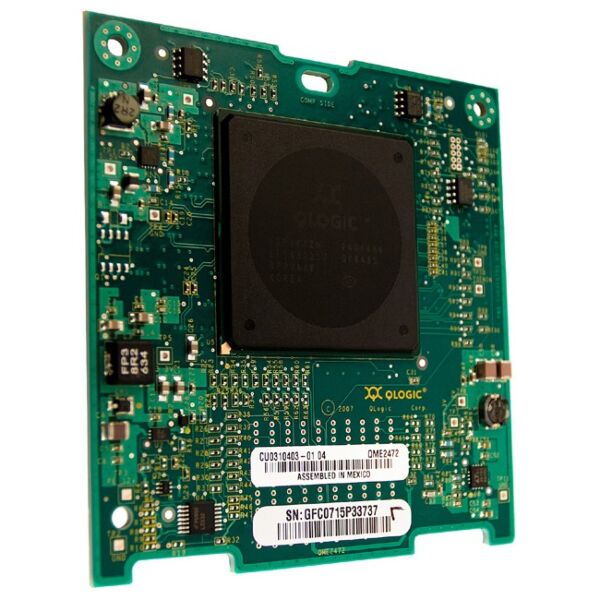

Description du produit
Bus interface
PCI Express x4
Memory
Integrated 512KB SRAM per port, 1-MB flash (SPI), 2-KB NVRAM (SPI), 2-Kb EEPROM (I2C)
Hardware platforms
Dell PowerEdge M600, Dell PowerEdge M605
Compliance
PCI Express Base Specification, rev. 1.0a, PCI Bus Power Management Interface Specification, revision 1.1
Fibre Channel Specifications
Data rate
4/2/1-Gbps auto-negotiation (4.25/2.125/1.0625-Gbps)
Performance
150,000 IOPS per port
Topology
Point-to-point (N_Port), arbitrated loop (NL_Port), switched fabric (N_Port)
Logins
Support for F_Port and FL_Port login, 2,048 concurrent logins and 2,048 active exchanges per port
Protocols
FCP (SCSI-FCP), FC-TAPE (FCP-2)
Compliance
SCSI-3 Fibre Channel Protocol (SCSI-FCP), Fibre Channel Physical and Signaling Interface (FC-PH), Fibre Channel Physical and Signaling, Interface 2nd Generation (FC-PH-2), Third Generation Fibre Channel Physical and Signaling Interface (FC-PH-3), Fibre ChannelArbitrated Loop (FC-AL-2), Fibre Channel Fabric Loop Attachment Technical Report (FC-FLA), Fibre ChannelPrivate Loop Direct Attach Technical Report (FC-PLDA), Fibre Channel Tape (FC-TAPE) Profile, SCSI Fibre Channel Protocol-2 (FCP-2), Second Generation FC Generic Services (FC-GS-3), Third Generation FC Generic Services (FC-GS-3), Fibre Channel Framing and Signaling (FC-FS)
PCI Express x4
Memory
Integrated 512KB SRAM per port, 1-MB flash (SPI), 2-KB NVRAM (SPI), 2-Kb EEPROM (I2C)
Hardware platforms
Dell PowerEdge M600, Dell PowerEdge M605
Compliance
PCI Express Base Specification, rev. 1.0a, PCI Bus Power Management Interface Specification, revision 1.1
Fibre Channel Specifications
Data rate
4/2/1-Gbps auto-negotiation (4.25/2.125/1.0625-Gbps)
Performance
150,000 IOPS per port
Topology
Point-to-point (N_Port), arbitrated loop (NL_Port), switched fabric (N_Port)
Logins
Support for F_Port and FL_Port login, 2,048 concurrent logins and 2,048 active exchanges per port
Protocols
FCP (SCSI-FCP), FC-TAPE (FCP-2)
Compliance
SCSI-3 Fibre Channel Protocol (SCSI-FCP), Fibre Channel Physical and Signaling Interface (FC-PH), Fibre Channel Physical and Signaling, Interface 2nd Generation (FC-PH-2), Third Generation Fibre Channel Physical and Signaling Interface (FC-PH-3), Fibre ChannelArbitrated Loop (FC-AL-2), Fibre Channel Fabric Loop Attachment Technical Report (FC-FLA), Fibre ChannelPrivate Loop Direct Attach Technical Report (FC-PLDA), Fibre Channel Tape (FC-TAPE) Profile, SCSI Fibre Channel Protocol-2 (FCP-2), Second Generation FC Generic Services (FC-GS-3), Third Generation FC Generic Services (FC-GS-3), Fibre Channel Framing and Signaling (FC-FS)
Caractéristiques
Marque | QLOGIC |
---|---|
Interface | Fibre Channel 4Gb/s |
Nombre de ports | 2 |
Facteur de forme | Exppress Module |
Normes | ANSI Fibre Channel: FC-PH-3, FC-PI-2, FC-FS, FC-AL-2, FC-GS-4, FC-FLA, FC-PLDA, FC-SP, FC-TAPE, FCP-2, and RFC 2625 (IP over FC) |
