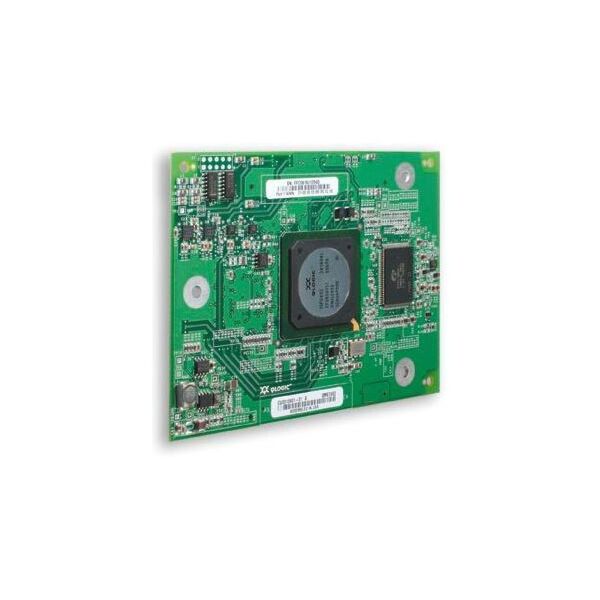

Qlogic QME2462

Qlogic QME2462 - QME2462

Disponibilité : Livrable sous 5 jours
Etat : Neuf
En stock
HT : 375,00 € TTC : 450,00 €
OU 12452 Poser une question/Devis

Vue générale rapide

Qlogic QME2462 +d'infos »
QR Code QR:  Qlogic QME2462

Description du produit

Bus interface
PCI Express x4

Memory
# 1-MB SRAM per port
# 1-MB flash (SPI)
# 2-KB NVRAM (SPI)
# 2-KB EEPROM (I2C)

Hardware platforms
# Dell PowerEdge 1855
# Dell PowerEdge 1955

Compliance
# PCI Express Base Specification, rev. 1.0a
# PCI Bus Power Management Interface Specification, revision 1.1

Fibre Channel Specifications
Data rate
2/1 Gbps auto-negotiation (2.125/1.0625 Gbps)

Performance
150,000 IOPS per port

Topology
# Point-to-point (N_Port)
# Arbitrated loop (NL_Port)
# Switched fabric (N_Port)
Logins
# Support for F_Port and FL_Port login
# 2,048 concurrent logins and 2,048 active exchanges per port
Protocols
# FCP (SCSI-FCP)
# FC-TAPE (FCP-2)
Compliance
# SCSI-3 Fibre Channel Protocol (SCSI-FCP)
# Fibre Channel Physical and Signaling Interface (FC-PH)
# Fibre Channel Physical and Signaling Interface 2nd Generation (FC-PH-2)
# Third Generation Fibre Channel Physical and Signaling Interface (FC-PH-3)
# Fibre Channel—Arbitrated Loop (FC-AL-2)
# Fibre Channel Fabric Loop Attachment Technical Report (FC-FLA)
# Fibre Channel—Private Loop Direct Attach Technical Report (FC-PLDA)
# Fibre Channel Tape (FC-TAPE) profile
# SCSI Fibre Channel Protocol-2 (FCP-2)
# Second Generation FC Generic Services (FC-GS-3)
# Third Generation FC Generic Services (FC-GS-3)
# Fibre Channel Framing and Signaling (FC-FS)

Physical Specifications
Ports
Dual 2-Gbps Fibre Channel

Form factor
Dell PowerEdge mezzanine card

Caractéristiques

Interface Fibre Channel 4Gb/s
Connecteur d'extension PCIe x4
Nombre de ports 2
Facteur de forme Exppress Module
Normes ANSI Fibre Channel: FC-PH-3, FC-PI-2, FC-FS, FC-AL-2, FC-GS-4, FC-FLA, FC-PLDA, FC-SP, FC-TAPE, FCP-2, and RFC 2625 (IP over FC)
