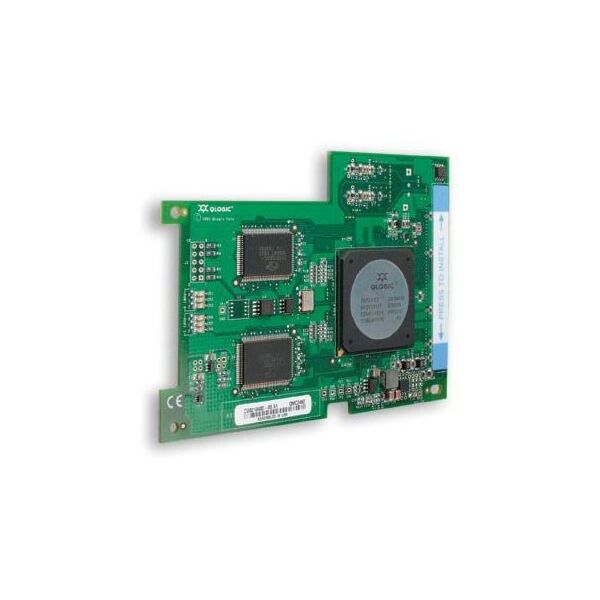

Qlogic QMC2462

Qlogic QMC2462 - QMC2462

Disponibilité : Livrable sous 5 jours
Etat : Neuf
En stock
HT : 687,50 € TTC : 825,00 €
OU 12449 Poser une question/Devis

Vue générale rapide

Qlogic QMC2462 +d'infos »
QR Code QR:  Qlogic QMC2462

Description du produit

Bus interface
64-bit, 133-MHz PCI-X

Memory
# 1-MB SRAM per port
# 1-MB flash (SPI)
# 2-KB NVRAM (SPI)
# 4-KB EEPROM (I2C)

Hardware platforms
# IBM HS20
# IBM HS40
# IBM LS20
# IBM LS21
# IBM LS41
# IBM JS20

Compliance
# PCI-X Protocol Addendum to the PCI Local Bus Specification, revision 2.0a
# PCI Bus Power Management Interface Specification, revision 1.1

Fibre Channel Specifications

Data rate
# 4/2/1 Gbps auto-negotiation (4.25/2.125/1.0625 Gbps)

Performance
150,000 IOPS per port

Topology
# Point-to-point (N_Port)
# Arbitrated loop (NL_Port)
# Switched fabric (N_Port)

Logins
# Support for F_Port and FL_Port login
# 2,048 concurrent logins and 2,048 active exchanges per port

Protocols
# FCP (SCSI-FCP)
# FC-TAPE (FCP-2)

Compliance
# SCSI-3 Fibre Channel Protocol (SCSI-FCP)
# Fibre Channel Physical and Signaling Interface (FC-PH)
# Fibre Channel Physical and Signaling Interface 2nd Generation (FC-PH-2)
# Third Generation Fibre Channel Physical and Signaling Interface (FC-PH-3)
# Fibre Channel-Arbitrated Loop (FC-AL-2)
# Fibre Channel Fabric Loop Attachment Technical Report (FC-FLA)
# Fibre Channel-Private Loop Direct Attach Technical Report (FC-PLDA)
# Fibre Channel Tape (FC-TAPE) profile
# SCSI Fibre Channel Protocol-2 (FCP-2)
# Second Generation FC Generic Services (FC-GS-3)
# Third Generation FC Generic Services (FC-GS-3)
# Fibre Channel Framing and Signaling (FC-FS)

Physical Specifications

Ports
Dual 4Gbps FC

Form factor
IBM BladeCenter Expansion Card

Caractéristiques

Marque QLOGIC
Interface Fibre Channel 4Gb/s
Connecteur d'extension 64-Bit, 133MHz PCI-X
Nombre de ports 2
Facteur de forme Exppress Module
Normes ANSI Fibre Channel: FC-PH-3, FC-PI-2, FC-FS, FC-AL-2, FC-GS-4, FC-FLA, FC-PLDA, FC-SP, FC-TAPE, FCP-2, and RFC 2625 (IP over FC)
