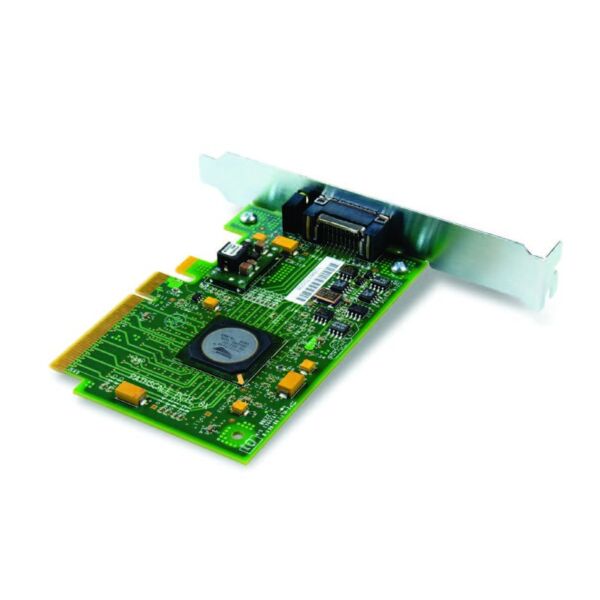

Qlogic QLE7140 - QLE7140

PCI Express Interface
# PCIe v1.1 x8 compliant
# PCIe slot compliant (fits into x8 or x16 slot)

Connectivity
# Single InfiniBand 4X port (10+10 Gbps) - Copper
# External fiber optic media adapter module support
# Compatible with InfiniBand switches from Cisco®, SilverStorm, Mellanox®, Microway,
and Voltaire®
# Interoperable with host channel adapters (HCAs) from Cisco, SilverStorm, Mellanox
and Voltaire running the OpenIB software stack

Host Driver/Upper Level Protocol (ULP) Support
# MPICH version 1.2.6 with MPI 2.0 ROMIO I/O 126
# TCP, NFS, UDP, SOCKETS through Ethernet driver emulation
# Optimized MPI protocol stack supplied
# 32- and 64-bit application ready
# IPoIB, SDP, UDP using OpenIB stack
InfiniPath Interfaces and Specifications
# 4X speed (10+10 Gbps)
# Uses standard IBTA 1.1 compliant fabric and cables; Link layer compatible
# Configurable MTU size (4096 maximum)
# Integrated SERDES

Management Support
# Includes InfiniBand 1.1 compliant SMA (Subnet Management Agent)
# Interoperable with management solutions from Cisco, SilverStorm, and Voltaire
# Open SM

Regulatory Compliance
# FCC Part 15, Subpart B, Class A
# ICES-003, Class A
# EN 55022, Class A
# VCCI V-3/2004.4, Class A

Operating Environments
# Red Hat Enterprise Linux 4.x
# SUSE Linux 9.3 & 10.0
# Fedora Core 3 & Fedora 4

InfiniPath Adapter Specifications
# Typical Power Consumption: 5 Watts
# Available in PCI half height, short-form factors
# Operating Temperature: 10 to 45°C at 0-3km -30 to 60°C (Non-operating)
# Humidity 20% to 80% (Non-condensing, Operating) 5% to 90% (Non-operating)
InfiniPath PCIe ASIC Specifications
# HSGBA package, 484 pin, 23.0 mm x 23.0 mm 1 mm ball pitch
# 2.6 Watts (typical)
# Requires 1.0V and 3.3V supplies, 33V supplies, plus InfiniBand interface reference voltages.
