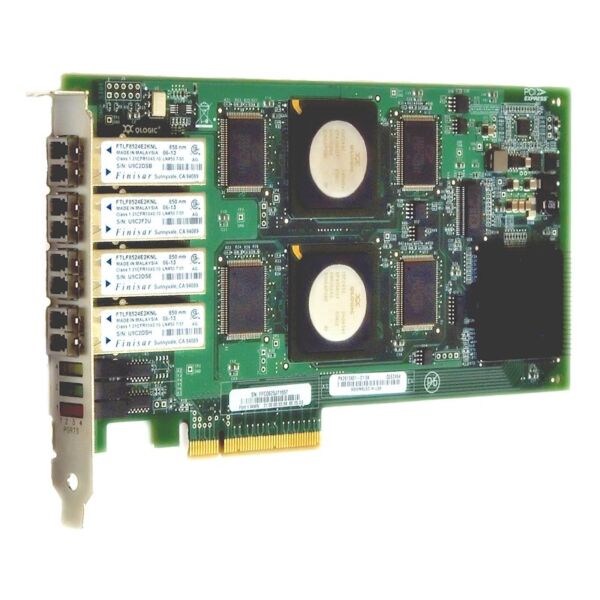

Qlogic QLE2464 - QLE2464

Host Bus Interface Specifications

Bus interface
PCI Express x4

Memory
1-MB SRAM, 1-MB flash (SPI), and 2-KB NVRAM (SPI)

Hardware platforms*
IA32 (x86), IA64, IEM64T, AMD Opteron 64, Sun SPARC, Apple G5 (Xserve and Power Mac)

Compliance
PCI Express Base Specification, revision 1.0a, PCI Express Card Electromechanical Specification rev. 1.0, PCI Bus Power Management Interface Specification revision 1.1

Fibre Channel Specifications
Data rate
4/2/1 Gbps auto-negotiation (4.2480/ 2.1240/ 1.0625 Gbps)

Performance
150,000 IOPS per port

Topology
Point-to-point (N_Port), arbitrated loop (NL_Port), and switched fabric (N_Port)

Logins
Support for F_Port and FL_Port login. 2,048 concurrent logins and 2,048 active exchanges

Class of service
Class 2 and 3

Protocols
FCP (SCSI-FCP), FC-TAPE (FCP-2)

Compliance
SCSI-3 Fibre Channel Protocol (SCSI-FCP), Fibre Channel Physical and Signaling Interface (FC-PH), Fibre Channel 2nd Generation (FC-PH-2), Third Generation Fibre Channel Physical and Signaling Interface (FC-PH-3), Fibre Channel-Arbitrated Loop (FC-AL-2), Fibre Channel Fabric Loop Attachment Technical Report (FC-FLA), Fibre Channel-Private Loop Direct Attach Technical Report (FC-PLDA), Fibre Channel Tape (FC-TAPE) profile, SCSI Fibre Channel Protocol-2 (FCP-2), Second Generation FC Generic Services (FC-GS-2), Third Generation FC Generic Services (FC-GS-3), Fibre Channel Framing and Signaling (FC-FS)
