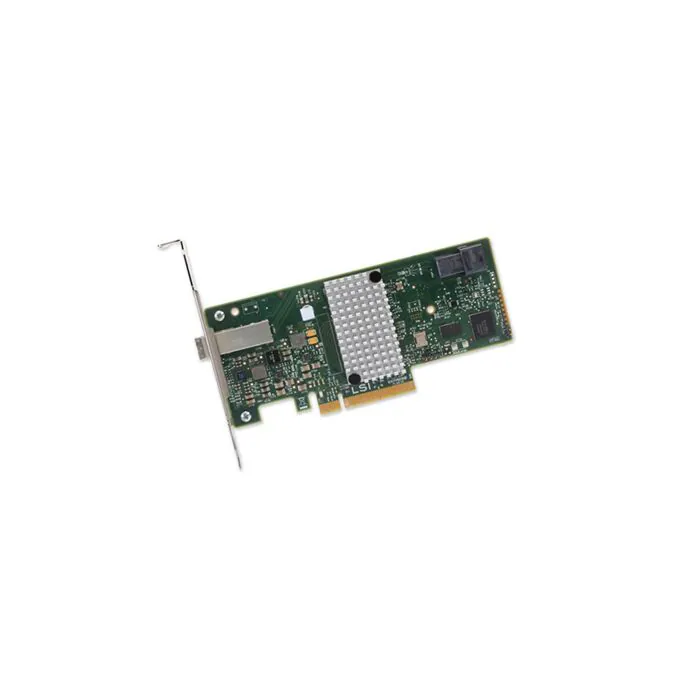

Broadcom Adaptateur SAS 9300-4i4e
H5-25515-00
Principales caractéristiques
Adaptateur SAS 3.0 12Gb/s Broadcom SAS 9300-4i4e, 1port mini-SAS HD (SFF-8643), 1 port mini-SAS HD externe (SFF-8644), interface PCIe 3.0 8x
DISPONIBILITÉ : Livrable sous 72h
TTC :
456,00 €
HT:
380,00 €
HT:
HT:
Description du produit
Caractéristiques
| Interface Carte | SATA-3 6G, SAS-3 12G |
|---|---|
| Interface Hôte | PCIe 3.0 x8 |
| Connecteur Carte | SFF-8643 Internal mSAS HD, SFF-8644 External mSAS HD |
| Nombre de Ports | 8 |
| Model Number | LSI00348 |
Caractéristiques Détaillées
| IO Controller | SAS 3008 Fusion MPT 2.5 |
|---|---|
| Port Count | 4 port ext/4 port int |
| Connectors | Mini SAS HD SFF8644 One (x4), SFF8643 One (x4) |
| Storage Connectivity Data Transfer Rates | 12Gb/s SAS 3.0 Compliant |
| SAS Bandwidth | Half Duplex (x8 wide bus) 9600 MB/s |
| Port Configurations | 8 ea, x1 ports (individual drives) 2 ea, x4 wide port |
| PCI Data Burst | x8 lane, PCIe 3.0 |
| Transfer Rates | Half Duplex x8, PCIe 3.0, 8000 MB/s |
| Form Factor | Low Profile |
| Physical Dimensions | 2.6” x 6.0” |
| Brackets | Full Height and low profile vented |
| Cable Support | Passive Copper Active Optical (Ext only) |
| Brackets | Full Height and low profile vented |
| LED Management | Reference SFF-8485 (SGPIO) compliant |
| Operating Voltage | +12V +/-8%; 3.3V +/-9% |
| PCI Power (Nominal) | 14.2W |
| Device Support | 1024 Non-RAID devices |
| Environmental | Operating: 0°C to 55°C, Storage: -45°C to 105°C, 5 to 90% non-condensing Airflow: 200 LFM |
| MTBF | >2,800,000 hours |
| Regulatory Certifications | EMC: Class B-US (CFR 47, P15B); Canada (ICES-00); Japan (V-3/02.04); Europe (EN55022/EN55024); Australia/New Zealand (AS/NZS 3548); Korea (N-B 2-0001-404); Safety: EN60950; RoHS; WEEE |
| OS Support | Microsoft Windows, Linux (SuSE , Red Hat), Solaris, VMware, FreeBSD; See www.lsi.com/support for details on versions * The HBA supports Solaris 10 and Oracle® provides a built in driver; installation of an Avago driver is not required. For more information on the Oracle Solaris 10 driver and installation, sign in at the following Oracle link: https://support.oracle.com/ Contact Oracle support for Oracle driver or software support. |
| Warranty | 3 years, free advanced technical support, advanced replacement option |
