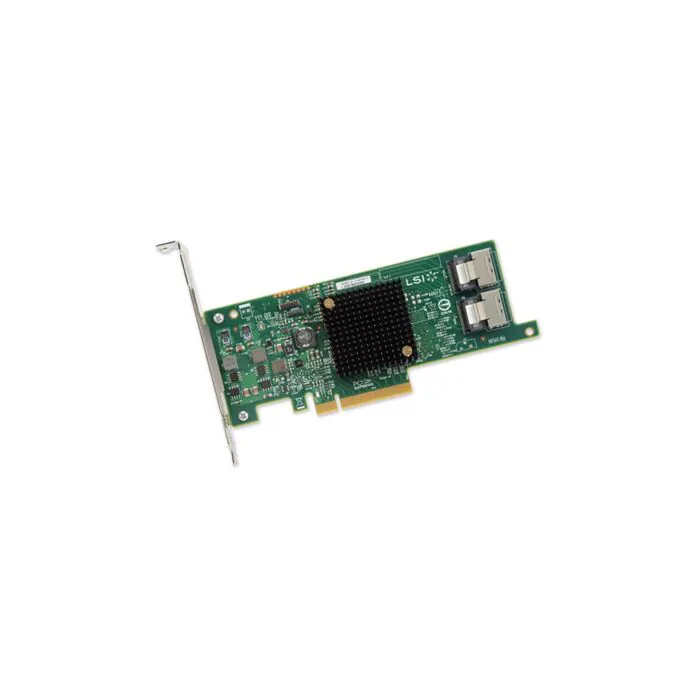

LSI Adaptateur SAS 9217-8i - 9217-8i

IO Controller LSISAS2308/ Fusion MPT 2.0
Storage Connectivity; Data Transfer Rates 8 ports; 6Gb/s SAS 2.1 compliant
SAS Bandwidth
Half Duplex

600 MB/s per lane
Port Configurations
8 ea, x1 ports (individual drives)-or-
2 ea, x4 wide port

Host Bus X8 lane, PCI Express 3.0 compliant
PCI Data Burst Transfer Rates
Half Duplex

X8, PCIe 8000 MB/s
Physical Dimensions Low Profile (2. 6” x 6.6”)
Connectors Two Mini-SAS internal connectors (SFF8087)
Brackets Full height and low profile
Cable Support Passive Copper
Operating Voltage +12V +/-8%; 3.3V +/-8%
PCI Power (Nominal) 9.8W typical, Airflow 200 LFM
Device Support 256 Non-RAID SAS/SATA devices
Integrated RAID (IR)
RAID 0 10 per volume
RAID 1 2 per volume plus hot spare
RAID 1E 10 per volume
RAID 10 10 per volume
Environmental
Operating Storage
0°C to 55°C -45°C to 105°C
5 to 90% Non-condensing 5 to 90% Non-condensing
MTBF >2,000,000 Hours
Regulatory Certifications EMC: Class B-US (CFR 47, P15B); Canada (ICES-003); Japan (V-3/02.04); Europe (EN55022/EN55024); Australia/New Zealand (AS/NZS 3548); Safety: EN60950; RoHS; WEEE
OS Support
Microsoft Windows, Linux (SuSE , Red Hat), Solaris, VMware, FreeBSD
See http://www.lsi.com/support/pages/downloads.aspx for details on versions

Warranty
3 years; with advanced replacement option
