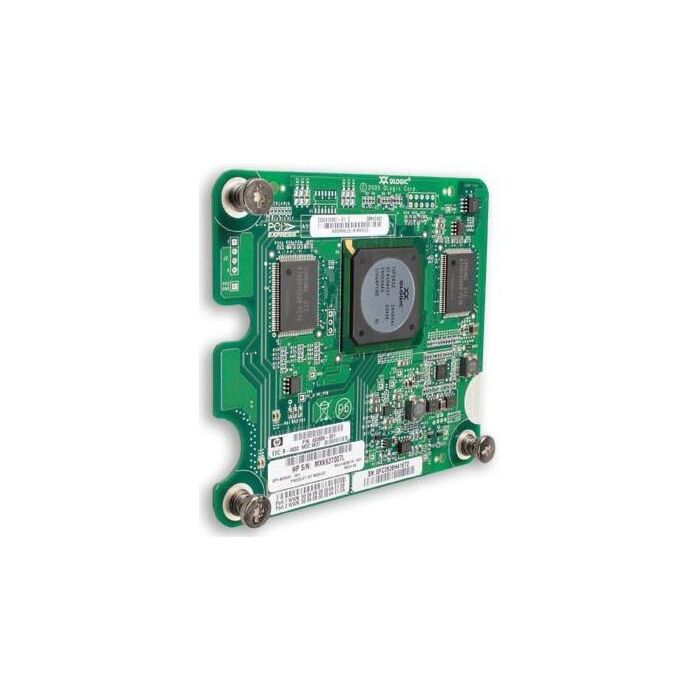

Description du produit
Bus interface
PCI Express x4
Memory
# 1-MB SRAM per port
# 1-MB flash (SPI)
# 2-KB NVRAM (SPI)
# 4-KB EEPROM (I2C)
Hardware platforms
HP c-Class BladeSystem
Compliance
# PCI Express Base Specification, rev. 1.0a
# PCI Bus Power Management Interface Specification, revision 1.1
Fibre Channel Specifications
Data rate
# 4/2/1 Gbps auto-negotiation
# (4.25/2.125/1.0625 Gbps)
Performance
150,000 IOPS per port
Topology
# Point-to-point (N_Port)
# Arbitrated loop (NL_Port)
# Switched fabric (N_Port)
Logins
# Support for F_Port and FL_Port login
# 2,048 concurrent logins and 2,048 active exchanges per port
Protocols
# FCP (SCSI-FCP)
# IP (FC-IP)
# FC-TAPE (FCP-2)
Compliance
# SCSI-3 Fibre Channel Protocol (SCSI-FCP)
# Fibre Channel Physical and Signaling Interface (FC-PH)
# Fibre Channel 2nd Generation (FC-PH-2)
# Third Generation Fibre Channel Physical and Signaling Interface (FC-PH-3)
# Fibre ChannelArbitrated Loop (FC-AL-2)
# Fibre Channel Fabric Loop Attachment Technical Report (FC-FLA)
# Fibre ChannelPrivate Loop Direct Attach Technical Report (FC-PLDA)
# Fibre Channel Tape (FC-TAPE) profile
# SCSI Fibre Channel Protocol-2 (FCP-2)
# Second Generation FC Generic Services (FC-GS-3)
# Third Generation FC Generic Services (FC-GS-3)
# Fibre Channel Framing and Signaling (FC-FS)
Physical Specifications
Ports
Dual 4Gbps FC
PCI Express x4
Memory
# 1-MB SRAM per port
# 1-MB flash (SPI)
# 2-KB NVRAM (SPI)
# 4-KB EEPROM (I2C)
Hardware platforms
HP c-Class BladeSystem
Compliance
# PCI Express Base Specification, rev. 1.0a
# PCI Bus Power Management Interface Specification, revision 1.1
Fibre Channel Specifications
Data rate
# 4/2/1 Gbps auto-negotiation
# (4.25/2.125/1.0625 Gbps)
Performance
150,000 IOPS per port
Topology
# Point-to-point (N_Port)
# Arbitrated loop (NL_Port)
# Switched fabric (N_Port)
Logins
# Support for F_Port and FL_Port login
# 2,048 concurrent logins and 2,048 active exchanges per port
Protocols
# FCP (SCSI-FCP)
# IP (FC-IP)
# FC-TAPE (FCP-2)
Compliance
# SCSI-3 Fibre Channel Protocol (SCSI-FCP)
# Fibre Channel Physical and Signaling Interface (FC-PH)
# Fibre Channel 2nd Generation (FC-PH-2)
# Third Generation Fibre Channel Physical and Signaling Interface (FC-PH-3)
# Fibre ChannelArbitrated Loop (FC-AL-2)
# Fibre Channel Fabric Loop Attachment Technical Report (FC-FLA)
# Fibre ChannelPrivate Loop Direct Attach Technical Report (FC-PLDA)
# Fibre Channel Tape (FC-TAPE) profile
# SCSI Fibre Channel Protocol-2 (FCP-2)
# Second Generation FC Generic Services (FC-GS-3)
# Third Generation FC Generic Services (FC-GS-3)
# Fibre Channel Framing and Signaling (FC-FS)
Physical Specifications
Ports
Dual 4Gbps FC
Caractéristiques
Marque | HP |
---|---|
Interface | Fibre Channel 4Gb/s |
Nombre de ports | 2 |
Facteur de forme | Exppress Module |
Normes | ANSI Fibre Channel: FC-PH-3, FC-PI-2, FC-FS, FC-AL-2, FC-GS-4, FC-FLA, FC-PLDA, FC-SP, FC-TAPE, FCP-2, and RFC 2625 (IP over FC) |
