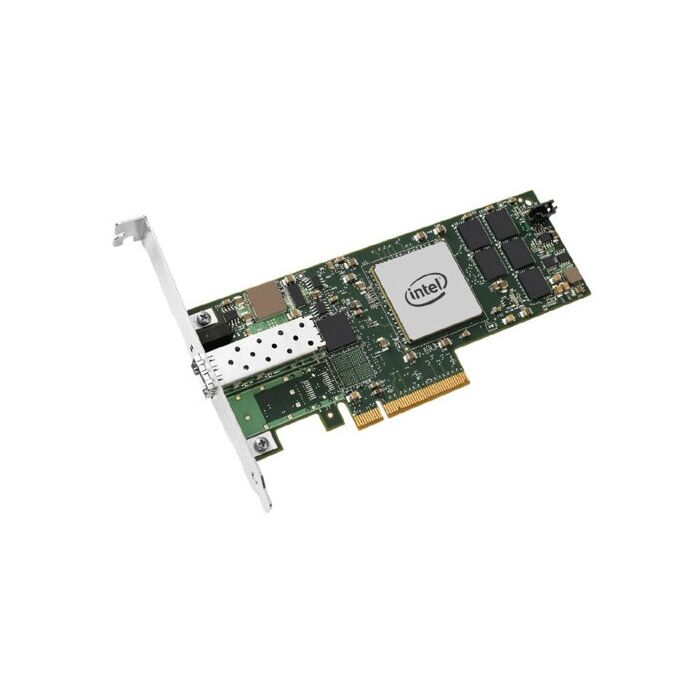

Intel Carte réseau NetEffect Server Cluster SFP  SR

Intel Carte réseau NetEffect Server Cluster SFP SR - E10G81GFSR

Disponibilité : Livrable sous 72h
Etat : Neuf
En stock
HT : 780,00 € TTC : 936,00 €
https://eurocapa.com/media/catalog/product/cache/1/image/265x/9df78eab33525d08d6e5fb8d27136e95/1/5/1553_vig_full_4.jpg
780.0000
OU 12793 Poser une question/Devis

Vue générale rapide

NetEffect Ethernet Server Cluster Adapter SFP+ SR +d'infos »
QR Code QR:  Intel Carte réseau NetEffect Server Cluster SFP  SR

Description du produit

Specifications

Performance
Latency: less than 6 sec
Bandwidth: over 18 Gbps (bi-directional)

10Gb Ethernet interface
Single-port CX4 or powered CX4
Single-port SPF+ (optical SR or pluggable)

Layer 2 network interface
Checksum offl oad (TCP, UDP, IP)
Large send offl oad (LSO)
Jumbo frame (9000 B)

iWARP (RDMA over Ethernet)
RDMAC v1.0 and IETF specifi cation support
User-level and kernel-level direct access support
Direct payload placement into application memory
Up to 32 independent accelerated IP addresses
Concurrent support for up to 8000 simultaneous
iWARP connections

Block and fi le storage
iSCSI connectivity using Linux Open-iSCSI initiator
and Microsoft* iSCSI initiator
NFS and CIFS

Memory
ECC protected industry-standard DDR2
256 MB standard on-board

Standards
IEEE 802.3-2005: 10GbE, link aggregation, link pause,management
IEEE 802.3ae 10Gb Ethernet over fibre
IEEE 802.3ak CX4
IEEE 802.1p Priority Encoding
IEEE 802.1Q VLAN tagging, support for 4096 VLANs
IPv4 (all connections),
IPv6 (unaccelerated connections)
IETF RFCs: 793, 1323, 2581, 3782

Host interface
PCI Express x8 v1.1

Management
ACPI 2.0c and PCI Power Management 1.2 compliant
PXE boot support

APIs/Middleware
Sockets and standard NIC
OpenFabrics iWARP Verbs
uDAPL
Intel® MPI, HP-MPI, Scali MPI, MVAPICH2

Operating systems
Microsoft Windows* Server 2003 (layer 2 only)
Protocol software supporting Linux Novell and Red Hat, kernels 2.6.9 and higher

Power (typical)
CX4 single-port: 6.2 W
SFP+ single-port: pluggable (no module): 8.5 W , SR optical module: 9 W

Physical and Environmental
Operating temperature: 0 to 65oC
Dimensions
Length: 6.6 in
Width: 2.5 in
Full-height end bracket: 4.725 in
Low-profi le end bracket: 3.12 in
Ships with full-height bracket installed, low-profile bracket added in package
No fan or heat sink required

Certifications
RoHS compliant
PCI Express 1.1 compliant
FCC Class A

Caractéristiques

Marque Intel
